- Place of Origin: SHANDONG
- Brand Name: LIANHUAN
- Model Number: GGSK-12

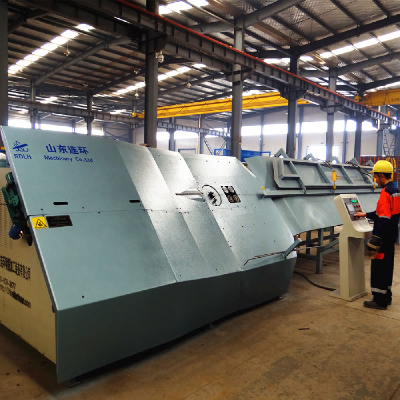

Product features
High accuracy frictional progressive feeding mechanism, harmless to steel bar rib.
With double line feeding system, the benders can greatly increase the productivity and ensure synchronous double rebar feeding, especially suitable for processing the new grade Ⅲ coiled rebar.
With the function of quick back and forth bending, the double vane bending die has improved its bending performance.
Powerful hydraulic shearing mechanism with good reliability.
The powerful memory database provides hundreds of shapes for using.

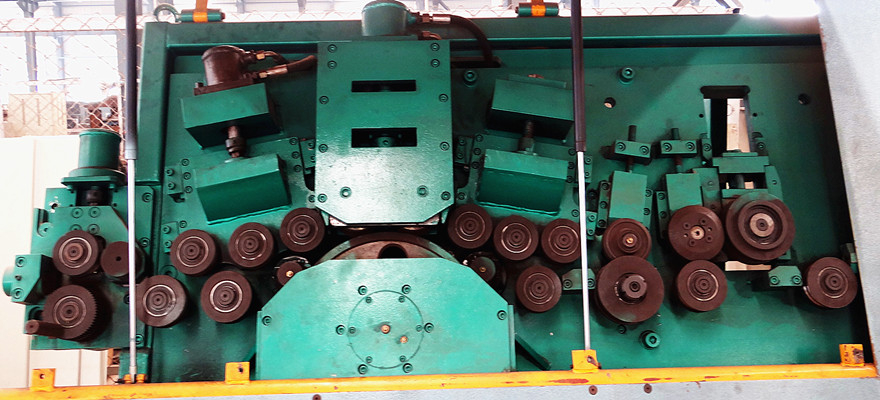

Hydraulic adjusting and straightening mechanism saves time and power, enhances the straightening effect.
Threading mechanism driven by hydraulic motor, fast threading and quick reload.
Bending scope of coiled rebar ranges from 6mm to 12mm rebar returning mechanism can perform long hook bending.
Controlling system equipped with Panasonic PLC, Panasonic touch screen and Inovance servo motor.
Technical parameters
Model | GGSK-12 |
Single line working ability | Diameter of gradeⅠ steel bar(mm)Ф6-Ф12 |
Diameter of grade Ⅲ rebar(mm)Ф6-Ф12 | |
Double line working ability | Diameter of gradeⅠ steel bar(mm) Ф6-Ф10 |
Diameter of grade Ⅲ rebar(mm)Ф6-Ф8 | |
Production efficiency(num/h) | 1440 |
Max bending angle (positive/ negative) | 180° |
Max feeding speed(mm/s) | 2000 |
Max bending speed(°/s) | 1000 |
Bending center height from ground(mm) | 1120 |
the range of bended rebar side | 130---1800 |
Max.length of long hook bending. | 4500 |
Total installed capacity(kw) | 30 |
