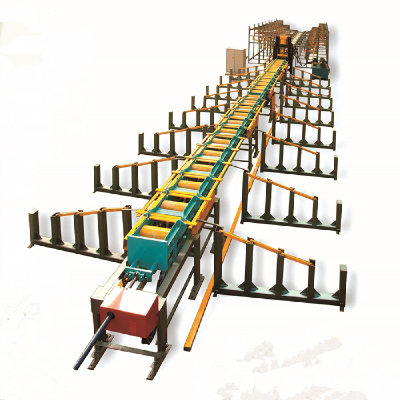

Hydraulic Shearing Line

Hydraulic Shearing Line

  • Min.Order Quantity: 1 Set
  • Supply Ability: 500 Sets per Month
  • Port: QINGDAO
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2014-07-06
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  132
  • Place of Origin:  SHANDONG
  • Brand Name:  LIANHUAN
  • Model Number:  HSL-600,HSL-1000,HSL-2000,HSL-3000
  • Weight: 6600.000 kg

Product features
1.After-shearing roller way employs movable track reinforced positioning plate,which is controlled by PLC. Positioning precision is good.
2.Hydraulic shearing system with the characteristics of low fault rate, high reliability and powerful shearing ability.
3.Employs multi-baffle plates, position rapidly and efficiently.
4.Bi-directional material received unit double the finished product storage volume.
5.Equips rebar suit cut management system, greatly increase the utilization rate.
6.Control system consists of Inovance PLC and frequency converter, Weinview touch screen.



Technical parameters

Model

HSL-600

HSL-1000

HSL-2000

HSL-3000

maximum shear force(KN)

600

1000

2000

3000

parting tool width(mm)

150

250

450


shear frequency

20

20

20


Roller convey speed(m/s)

1.5

1.5

1.5


working pressure(MPa)

25

25

25


Total installed capacity(kw)

20

27.5

39


dimensions of machine(mm)

27400x3250x1480

28000x6800x2600

28500x7100x2650


weight of machine(kg)

6600

15500

17000



  • Size:  132
  • Place of Origin:  SHANDONG
  • Brand Name:  LIANHUAN
  • Model Number:  HSL-600,HSL-1000,HSL-2000,HSL-3000
  • Weight: 6600.000 kg


Model

HSL-600

HSL-1000

HSL-2000

HSL-3000

maximum shear force(KN)

600

1000

2000

3000

parting tool width(mm)

150

250

450


shear frequency

20

20

20


Roller convey speed(m/s)

1.5

1.5

1.5


working pressure(MPa)

25

25

25


Total installed capacity(kw)

20

27.5

39


dimensions of machine(mm)

27400x3250x1480

28000x6800x2600

28500x7100x2650


weight of machine(kg)

6600

15500

17000
