- Place of Origin: SHANDONG
- Brand Name: LIANHUAN
- Model Number: BPM-1250/BPM-1500/BPM-2000/BPM-2500

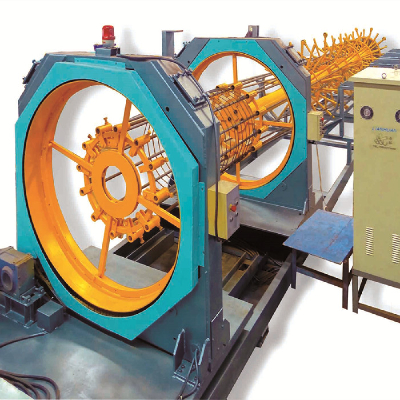

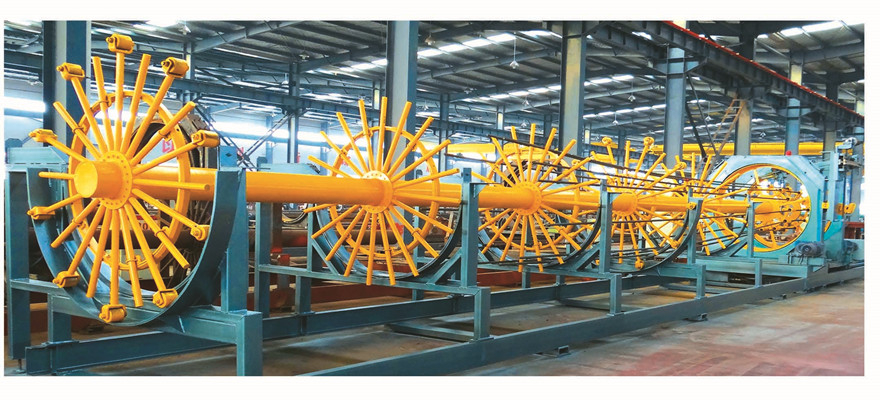

Cage Making Machine
Product features
1.With small tolerance and good forming quality,automatic rebar Wind-up mechanism can adjust the space between rebars in operation.
2.Automatic welding, accurate solder joint and labor intensity reduction.
3.Frequency converter controlled high precision Cage-drawing system.
4.Automatic cage holding design can prevent the cage from bending accident, which is caused by its weight in the middle of welding.
5.Automatic loading mechanism can speed up the loading rate and increase productivity.
6.The mould consists of moulding ring and conduit, which can adjust cage diameter and main rebar quantity fastly.
7.Forward and reverse roll type straightening mechanism with characteristics of long service life and good straightening effect.
8.Controlling system consists of Panasonic PLC, Panasonic touch screen,ABB frequency converter.
Model | BPM-1250 | BPM-1500 | BPM-2000 | BPM-2500 | |||||||||||||
Cage pile diameter(mm) | 200-1250 | 300-1500 | 400-2000 | 400-2500 | |||||||||||||
Cage length(m) | 12 | 18 | 24 | 27 | 12 | 18 | 24 | 27 | 12 | 18 | 24 | 27 | 12 | 18 | 24 | 27 | |
Cage max weight(kg) | 3000 | 4500 | 6000 | 8000 | |||||||||||||
Coil bar diameter(mm) | Ф5-Ф16 | ||||||||||||||||
Space between coil bar(mm) | 50-500 | ||||||||||||||||
Main bar diameter(mm) | Ф12-Ф40 | ||||||||||||||||
Hydraulic station pressure(Mpa) | 10 | ||||||||||||||||
Rated power(kw) | 13 | 15 | 23 | 23 | |||||||||||||
Dimensions of machine | length(m) | 28.5 | 38.5 | 46.5 | 55 | 27.5 | 38.5 | 46.5 | 54.5 | 27.5 | 38.5 | 46.5 | 54.5 | 29 | 42 | 50 | 59 |
Width(m) | 5 | 5 | 5 | 5 | 5.5 | 5.5 | 5.5 | 5.5 | 8 | 8 | 8 | 8 | 8.5 | 8.5 | 8.5 | 8.5 | |
height(m) | 2.2 | 2.2 | 2.2 | 2.2 | 2.5 | 2.5 | 2.5 | 2.5 | 3.3 | 3.3 | 3.3 | 3.3 | 3.5 | 3.5 | 3.5 | 3.5 | |
Weight of machine(T) | 7 | 9.3 | 10 | 11.3 | 12.5 | 16 | 18 | 20 | 18 | 21 | 24 | 28.5 | 20 | 26.5 | 33 | 39.5 | |
